Insert Calculation Line

The Insert Calculation Line command is used to insert a line on the drawing where illuminance levels are to be calculated.

To insert a calculation line on the drawing, go to
Ribbon: DM Photometrics→Calculation Areas→  Insert Line
Pulldown Menu: DM Photometrics→Insert Calculation Line

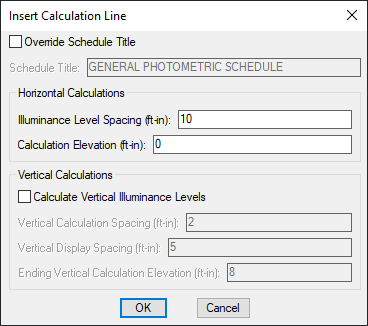

Insert Calculation Line Dialog Box​

  •  ☐ Override Schedule Title Whether the schedule title for the current calculation area is to be changed from the default calculation schedule title.

  •  Schedule Title: The title to be used in the calculation schedule for the calculation area. This field is enabled if the ☐ Override Schedule Title box is checked.

  •  Illuminance Level Spacing: The distance between points where illuminance levels will be calculated.

  •  Calculation Elevation: The elevation at which the calculation will be performed.

  •  ☐ Calculate Vertical Illuminance Levels At Area Boundary Whether vertical illuminance levels are to be calculated along the line.

  •  Vertical Calculation Spacing: The distance between points where vertical illuminance levels will be calculated.

  •  Vertical Display Spacing: The distance between vertical calculation points as they are displayed on the drawing.

  •  Ending Vertical Calculation Elevation: The maximum height at which vertical illuminance levels will be calculated.

Inserting the Calculation Line on the Drawing​

To insert the calculation line on the drawing, press the button. The settings you specified in the dialog box will be used for the line.

You will be prompted to draw the calculation line on the drawing.

Specify first point of calculation line or [<Select existing line>]:

  •  First point of calculation area Specify a point on the drawing. Continue entering points on the drawing until the calculation line is complete. Press ENTER to finish drawing the calculation line.

  •  Select existing line Press ENTER to draw the calculation line by tracing a polyline on the drawing. Specify the polyline on the drawing to be traced. You will be asked whether to erase the polyline after the calculation line is inserted.

If you checked ☐ Calculate Vertical Illuminance Levels, you will then be prompted to specify on which side of the line the vertical illuminance levels will be displayed.

Specify side to place vertical illuminance values:

You will then be prompted to insert the calculation schedule, group the calculation line with an area, or press ENTER to finish the command.

Specify insertion point for calculation schedule or point inside boundary to group with:

  •  Insert the calculation schedule To insert the calculation schedule, select a point on the drawing that is not inside of a calculation area. The calculation schedule will be inserted at the point specified.

  •  Group with an area or group To group the line with an area or group, select a point on the drawing that is inside of a calculation area. They will be grouped. If the selected calculation area already has a calculation schedule on the drawing, that calculation schedule will be used for the group. If it does not have a calculation schedule, no calculation schedule will be used for the group.

  •  Finish the command Press ENTER to finish the command without inserting a calculation schedule or grouping the calculation line with an area or group. No calculation schedule will be inserted and the calculation line will be in its own separate group.

Related Options

Schedule title justification: Sets the justification for the schedule title.

Schedule column label justification: Sets the justification for column headings.

There are several options that set the default values for this dialog box. See the Calculation Areas Options section for more information.
